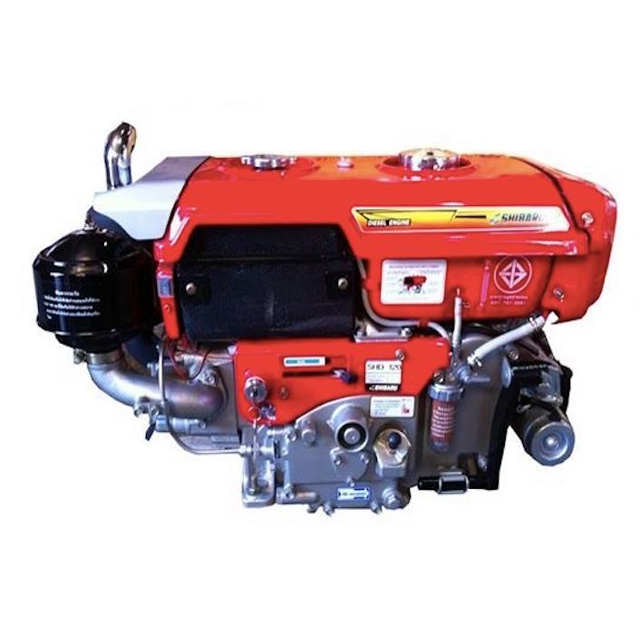

| ENGINE DETAILS | SHD110 | SHD120-ST | SHD160-ST | SHD180-ST |
| ENGINE TYPE | One Displacement 4 Stroke Radiator System Horizontal Engine | |||
| BORE X STROKE (mm) | 92x90 | 94x90 | 105x115 | 110x115 |
| DISPLACEMENT (cc) | 598 | 624 | 996 | 1093 |
| MAX. OUTPUT (ps(kw)/rpm) | 11HP/2400 (8.09kw/2400) | 12HP/2400 (8.83kw/2400) | 16HP/2200 (11.8kw/2200) | 18HP/2420 (13.2kw/2200) |
| RATED OUTPUT (ps(kw)/rpm) | 9.5HP/2400 (6.99kw/2400) | 10.5HP/2400 (7.72kw/2400) | 13.5HP/2200 (9.9kw/2200) | 15.5HP/2200 (91.4kw/2200) |
| COMBUSTION TYPE | Swirl Chamber | Direct Injection | ||
| COMPRESSION RATIO | 18:01 | 17:01 | 17:01 | 17:01 |
| FUEL CONSUMPTION | ≤264 | 238.1 | 246.2 | |
| COOLING SYSTEM | Fan & Radiator Type | |||
| LUBRICATING SYSTEM | Rotary TYpe | |||
| STARTING SYSTEM | Hand Starting | Hand Starting / Motor Starting | ||
| ROTATION | Counter Clockwise facing Fly Wheel | |||
| FUEL | SAE-2D | |||
| LUBRICANT | SAE No. 40 API (CF,CC) | |||
| AIR COOLER TYPE | Wet Type | |||
| WATER CAPACITY (ltr.) | 2.1 | 4.5 | ||
| FUEL CAPACITY (ltr.) | 10 | 13.8/9.7 | 9.7 | |
| LUBE CAPACITY (ltr.) | 2.3 | |||
| NET WEIGHT (kg.) | 117 | 122 | 165 | 182 |
| LAMPS | 12V,45/45 Watt | 12V, 35/35 Watt | ||
Related products

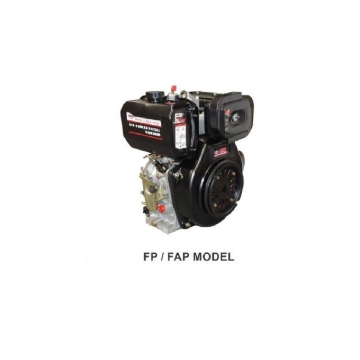

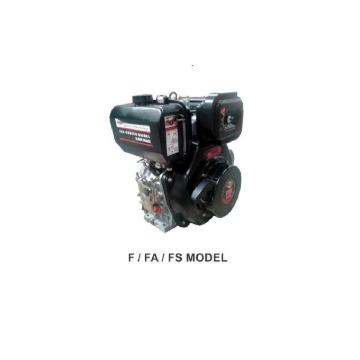

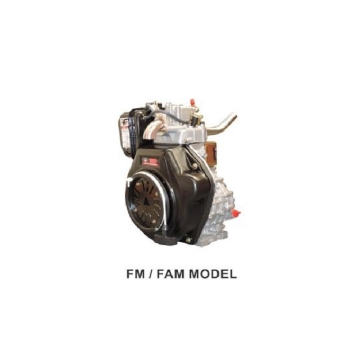

BEST & STRONG AIR COOLED DIESEL ENGINE BLACK SERIES
