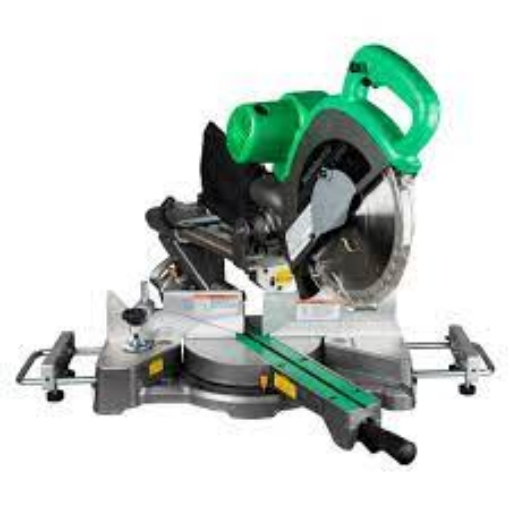

FEATURES:

• Revolutionary compact slide system allows the saw head to slide along fixed rails, eliminating the need for rear clearance
• Exclusive laser marker system from Hitachi increases cutting accuracy
• Micro miter and micro bevel adjustment knobs to dial-in to precise angles
• Large pivoting fence raises fence height to 4-11/16 inches to cut crown molding vertically
• 0-57 degree miter angle to the right for flexibility with 0-46 degree miter angle to the left
• 0-45 bevel angle range to the right and left allowing users to quickly and easily flip the saw blade and leave the material in place
• Positive stops on the miter and bevel scale, for easy to read measurements and quick settings
• Carbon brush access, allows the user to replace the brush as needed to greatly prolong tool life
• Vertical handle with soft, vibration reducing elastomer grip adds comfort and control

SPECIFICATIONS:

Capacity: Blade Diameter     305mm (12")

(H x W) Cross Cut: 0           107x312mm (4-3/16 x 12-1/4:)

Compound: Milter 45° Left   70 x 220mm (2-3/4 x 8-21/32")

                 Bevel 45° Left    See below detail.

Power Input                        1,600W

No load Speed                    3,800/min

Milter Angle:                       Right: 0-57° Left: 0-46°

Bevel Angle:                       Right: 0-45° Left: 0-45°

Positive Miter Angle Stop     0,15,22.5 and 45 0

Dimensions                        595 x 990 x 710mm

Weight                               23 kg (63.9 lbs.)

Standard Accessories          Blade, Dust bag, Vise Ass'y, Box Wrench

6 MONTHS WARRANTY
