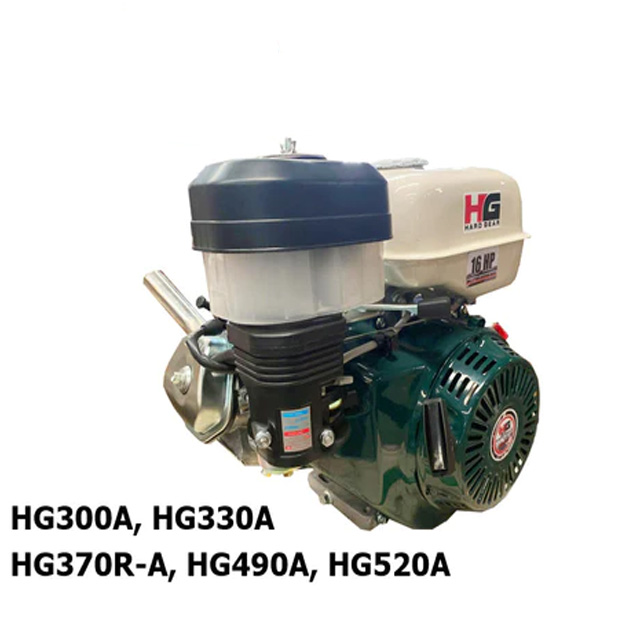

Hard Gear Engine Series - OHV 4 Stroke Gasoline Engine
Everything you need for the good time with your outdoor activity.

Hard gear Engines provides both high power output and low fuel consumption. It brings sophisticated technology, performance and durability for power equipment.

Construction: Concrete Mixers, Concrete Vibrators, Concrete and Asphalt Cutter, Plate Compactors, Screeders, Power Trowels, Portalift, VIbratory Rollers and more.

Agriculture: Blowers, Pumps, Sprayers, Tractors, Shredders, Threshers, Harvesters and more.

Transportation / Recreation: Fishing Boat, Motor Bancas, Go Carts, Trisikad-Kuliglig.

MODEL	HG370R-A	HG370R	HG490A	HG490	HG520A	HG520
Type	Air cooled, 4-cycle OHV 25° Inclined, Single Cylinder, Gasoline Engine
Displacement Volume (cc)	279		389		420
Bore x Stroke (mm)	77x58		88x64		90x66
Compression Ratio	8.2:1		8.6:1
Max. Power (HP/RPM)	9.0/1800		13.0/3600		16.0/3600
Max. Torque	34/1250		23/2500		26/2500
Air Cleaner/Lubrication	Oil bath type / Splash System
Starter System	Recoil Start with Automatic Compression Release
Oil Capacity (L)	1.1
Fuel Capacity (L)	6.5
Size(WxLxH) mm	540x460x510		450x490x500		420x510x490
Net Weight (kg)	25		31/34		33/36
