FEATURES:

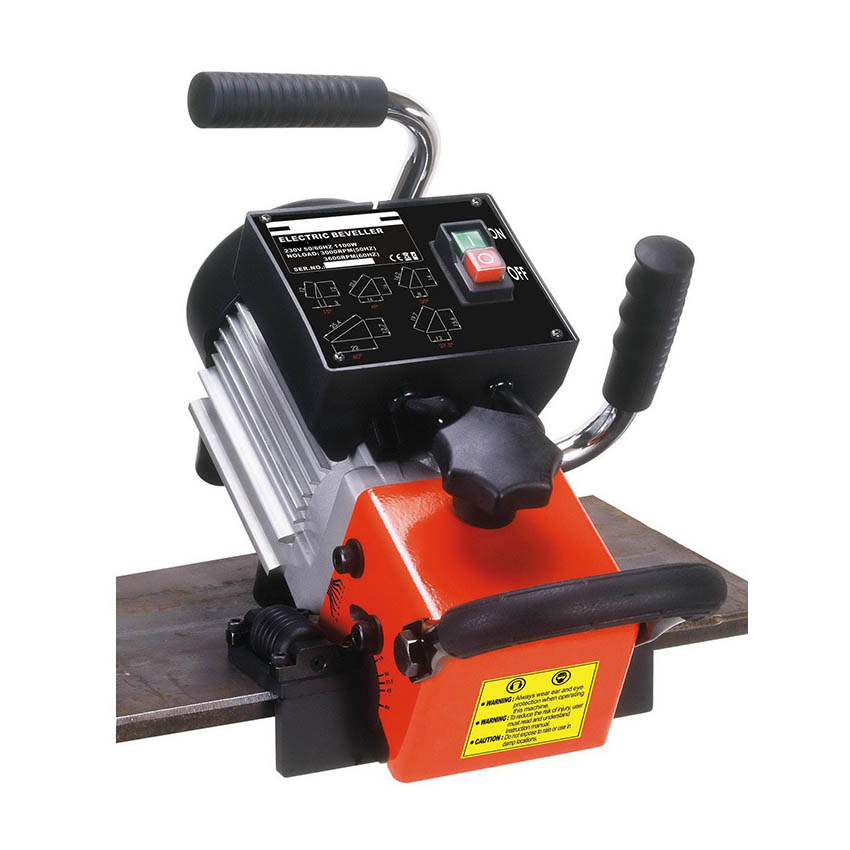

The Electric Beveler EB 24 comes with an AC induction motor which offers longer durability and lower noise,as well as its high torque.
The milling angle is adjustable progressively from 15° to 60° with a maximum land width of 21.9 mm. with weight only 19.3 kg,
its very handy, compact and robust desing allows for easy handling and convenient operation.
SPECIFICATIONS:
| Model | EB24 | |
|---|---|---|
| Power Input | 1100W | |
| Voltage | 110-120V~ 50-60Hz, 220-240V~ 50-60Hz | |
| No Load Min-1 | 60Hz: 3600 , 50Hz: 3000 | |
| Angular Adjustment | 60 Deg. | 13.7mm |
| 45 Deg. | 21.9mm | |
| 37.5 Deg. | 18.5mm | |
| 30 Deg. | 14.9mm | |
| 15 Deg. | 11.8mm | |
| Dimensions(LxWxH) | 475mm x 296mm x 247mm | |
| Net Weight | 19.3 kg ( 42.46 Lbs ) |
Standard Accessories: Milling Dics 2pcs, Square Carbide Inserts 12pcs,
Hex Wrench M8 & M3, M32 Combination Wrench, Open End Wrench 27x24mm
6 MONTHS WARRANTY
