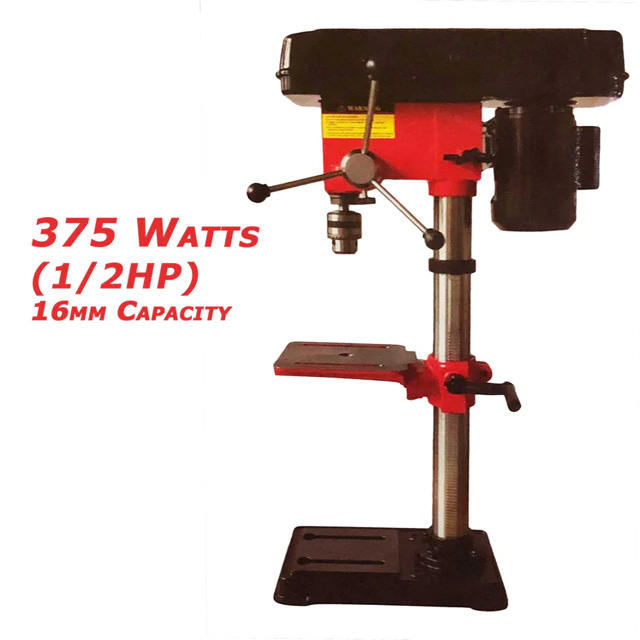

Quality & Affordability in Synergy

99.99% Copper Winding Motor

Features

• 5 Spindle Speed for better matching of speed to application
• 16mm drilling cpacity for all large drilling applications
• Locking depth stop for accurate blind hole drilling
• Fully Adjustable Table with Angle Indicator
• Cast Iron Base for added stability

Specifications

Drilling Capacity : 3-16mm
Spindle Travel : 60mm
Spindle Taper : B16
Speed of Spindle : 5
Rotary Radius of Table : 127mm
Table Size : 190x190mm
Base Size : 340x205mm
Max Distance Between Spindle Tip and Column : 420mm
Max Distance Between Spindle Tip and Base : 600mm
Dia of Column : Ø58mm
Motor Power : 375W(1/2HP)
Total Overall Dimension : 580x330x860mm

6 MONTHS WARRANTY
