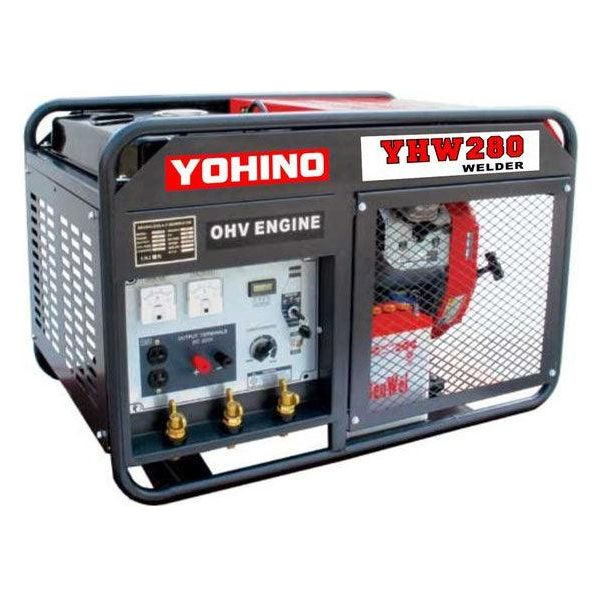

Yohino YHW280 Gasoline Generator & Welder Genset (Honda OHV GX620 Engine)

DC Welder

Model: YHW280
Max Current (A): 280
Rated Current: 250
Welding Voltage without Load: 52V
Work Voltage: 34V
Current Adjusting Range: 50-280 A
Welding Load Continuous Ratio: 50 %
Welding Stick: 2.5 -6.0mm

AC Generator

Rated Output (kVa): 5
Rated Current (A): 22.7
Phase: Single
Frequency: 60 Hz
Rated Voltage: 220V
Power Factor (cos⌀): 1

Engine

Model: GX620
Type: Vertical
Rated Power/Speed: 20 HP / 3600 rpm
Starting Fashion: Recoil / Electric Start
Fuel Type: Gasoline

Generator Set

Fuel Tank Capacity (L): 30
Continuous Running Time (H): 3.6
Oil Capacity: 1.5 L
Overall Dimensions: 953 x 617 x 662mm
Net weight: 185/195kg

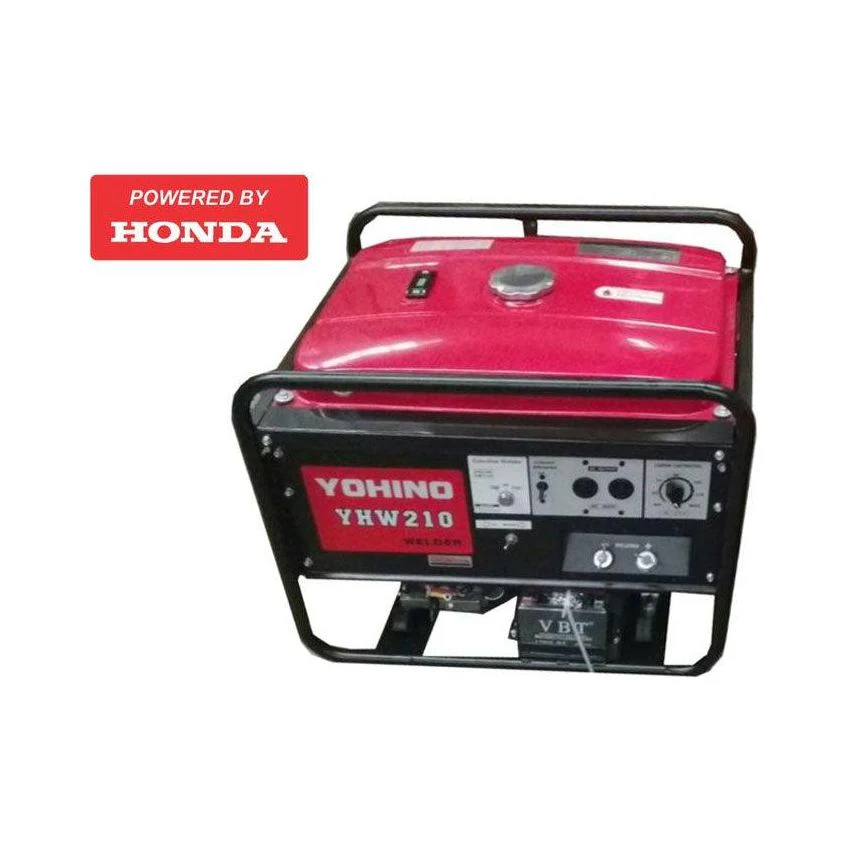

Yohino YHW210 Gasoline Generator & Welder Genset (Honda GX390 Engine)

DC Welder

Model: YHW210
Max Current (A): 210
Rated Current: 180
Welding Voltage without Load: 52V
Work Voltage: 28V
Current Adjusting Range: 90-210 A
Welding Load Continuous Ratio: 40 %
Welding Stick: 2.5 -5.0mm

AC Generator

Rated Output (kVa): 3.3
Rated Current (A): 15
Phase: Single
Frequency: 60 Hz
Rated Voltage: 220V
Power Factor (cos⌀): 1

Engine

Model: GX390
Type: Vertical
Rated Power/Speed: 13 HP / 3600 rpm
Starting Fashion: Recoil / Electric Start
Fuel Type: Gasoline

Generator Set

Fuel Tank Capacity (L): 25
Continuous Running Time (H): 9
Oil Capacity: 1.1 L
Overall Dimensions: 670 x 511 x 540mm
Net weight: 89 /91kg
