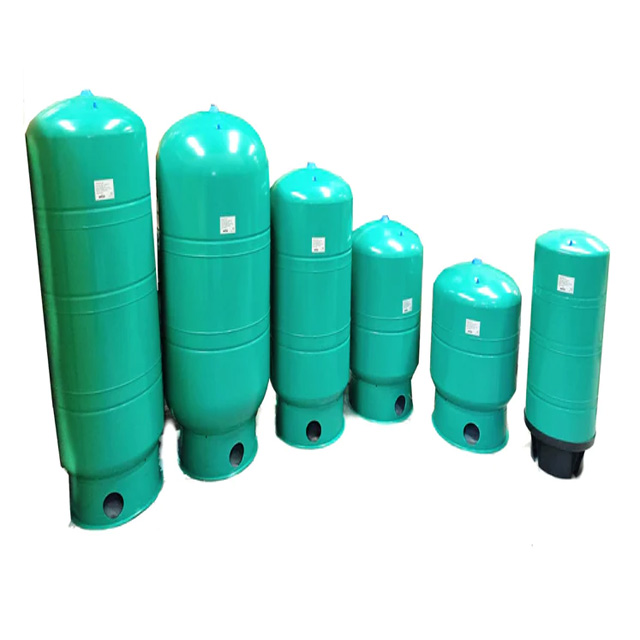

WILO SINGLE DIAPHRAGM PRESSURE TANK

Manufacturer: Wilo
Be the first to review this product
Single Diaphragm Pressure Tank
SKU: PRESSURE TANK
Vendor: Premier Screwking Bolts & Nuts Corp.
*
₱5.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Single Diaphragm Pressure Tank

Note: Pre-charge pressure must be less than 2PSI below cut-in pressure.

Factory Precharge: 30 P.S.I. / 2 bar
Maximum Pressure: 150 P.S.I. / 10 bar
Maximum Temperature: 90 Celsius

Model
Thread
Total tank Volume (L)
Accept Volume (L)
Net weight (kg)
Base Material
Connection Dimensions
 Dimensions (mm
A B
Vertical type with Base
PTB 100
NPT
 100 58.5 15 Plastic 1" 985 381
PTB 130 130 85.6 20.8 Steel 1-1/4" 750 559
PTB 160 160 115 24.1 Steel 1-1/4" 915 559
PTB 235 235 140 34.9 Steel 1-1/4" 1160 559
PTB 305 305 167 44.8 Steel 1-1/4" 1450 559
PTB 450 450 450 64.2 Steel 1-1/4" 1400 650
