WILO PDN SERIES - SUBMERSIBLE SEWAGE PUMP PDN-1404M, PDN2200T, PDN-3700T

Name: WILO PDN SERIES - SUBMERSIBLE SEWAGE PUMP PDN-1404M, PDN2200T, PDN-3700T
SKU: PDN-1404M, PDN2200T, PDN-3700T
Price: 5.00 PHP
Availability: InStock

Manufacturer: Wilo

Be the first to review this product

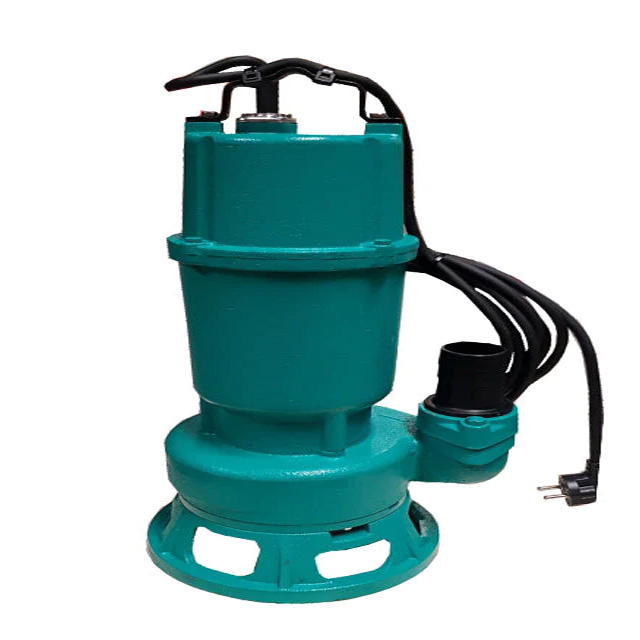

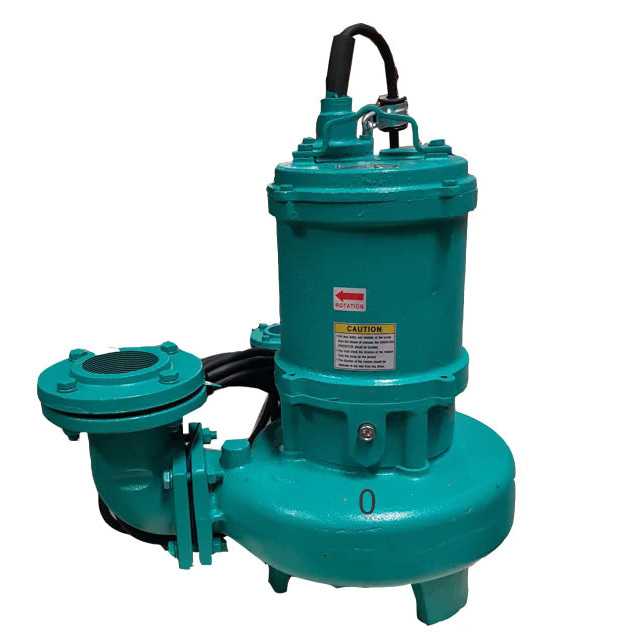

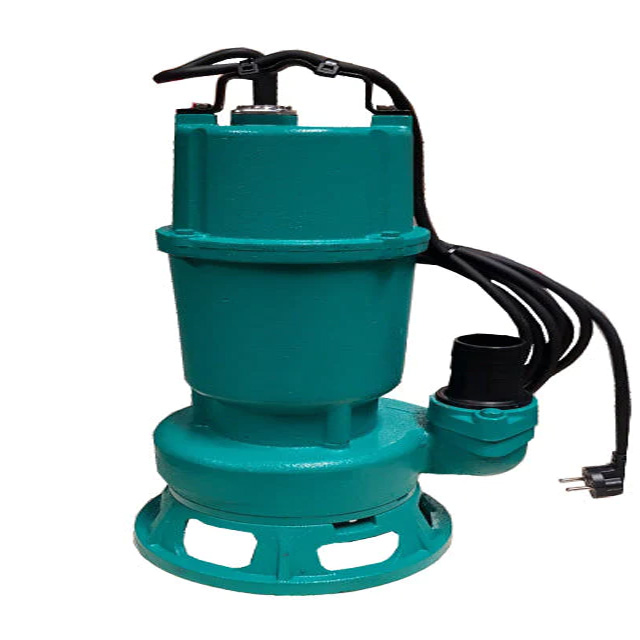

PDN Series - Submersible Sewage Pump

SKU: PDN-1404M, PDN2200T, PDN-3700T

Vendor: Premier Screwking Bolts & Nuts Corp.

Choose Variation *

PDN-1404M [+₱29,300.00]
PDN-2200T [+₱64,500.00]
PDN-3700T [+₱103,500.00]

₱5.00

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Submersible Sewage Pump
PDN Series

Features

Stainless steel shaft as standard
Leak-proof by double mechanical seal and oil seal
Motor protection by T.P.
Excellent sludge transfer by non clog type
Safety design with built in OLP (overload protector)
Various materials are available

Applications

Drainage for waste water at factories and waste water treatment plant
Delivery of sewage at sewage treatment plant, human waste treatment
Drainage for buildings
Treatment utility drainage

Standard Materials

Casing: Gray Cast Iron
Impeller: Gray Cast Iron
Shaft: Stainless Steel

Specifications

Model		PDN-1404M	PDN-2200T	PDN-3700T
Power Source PH x V		1 x 220	3 x 220	3 x 220
Output kw (HP)		0.95 (1-1/4")	2.2 (3)	3.7 (5)
RPM		3450	3450	1800
Discharge Dia. (mm)		50	65	80
Head (m)	Max	19	23.8	21.5
Head (m)	BEP	10	13.5	12
Flow Rate (gpm)	Max	105	238	390
Flow Rate (gpm)	BEP	67	125	240
Rated Current (A)		8	8.1	4.1
Bearing	Upper	6202ZZ	6203ZZ	6305ZZ
Bearing	Lower	6203ZZ	6306ZZ	6308ZZ
