FEATURES:

• This invisible hinge system creats uninterrupted flush-faced surface on the hinge side of the furniture door and generate a harmonic interior manner.

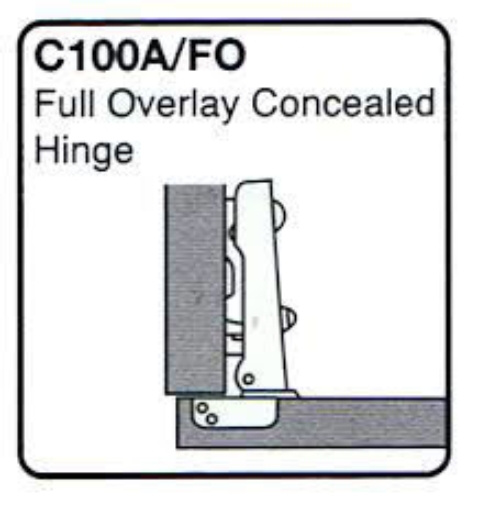

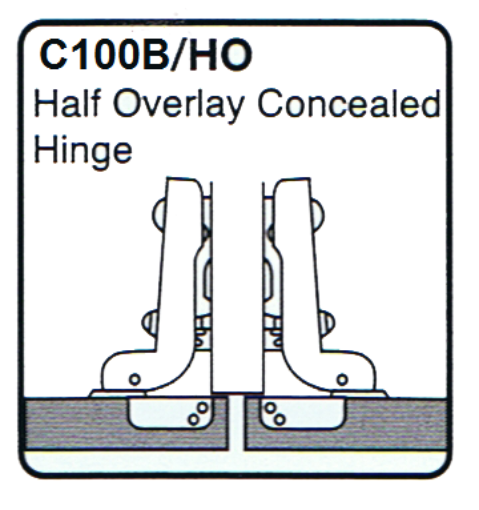

• Three hinge styles to fit for different door structures
• Fully concealed flush looking apperance
• Soft closing, snap-on design and cam adjustable
• Adjustable in 3 different directors (1 mm)
• Up and Down
• Left to right
• In and out

SPECIFICATIONS:

Opening angle: 100°

Hinge Cup:

Depth: 10 mm

Dimater: 35 mm

Door Thickness: 14 - 24 mm

Drilling Distance on Door: 3 - 7 mm
