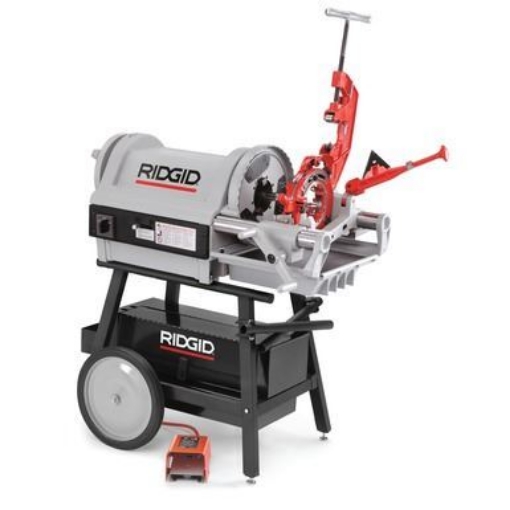

The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

Be the first to review this product

Manufacturer: Ridgid

SKU: Model 1224

Vendor: PremierScrewking

Availability: In stock

₱1,077,000.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Delivery date: 5-12 Days

Supported cards

Full Description
Reviews

FEATURES

An induction motor helps minimize noise.
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Constant and proper lubrication of dies and workpiece with through-head oiling.

SPECIFICATIONS

Nominal Pipe Capacity	1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity	1/4"-2" (6mm-50mm).
Motor Control	Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box	Two-speed gear box with a 3:1 ratio.
Chuck	Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device	Cam action.
Oiling Pump	Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling	Through die head

CATALOG NUMBER	MODEL NO.	DESCRIPTION	DIE HEAD	RPM	VOLTAGE (V)	FREQUENCY (HZ)	PHASE	MOTOR TYPE	AMP DRAW (A)	POWER	WEIGHT
CATALOG NUMBER	MODEL NO.	DESCRIPTION	DIE HEAD	RPM	VOLTAGE (V)	FREQUENCY (HZ)	PHASE	MOTOR TYPE	AMP DRAW (A)	POWER	LB.	KG
26097	1224	1/2" - 4" NPT Hammer Chuck Machine	711/714	36/12	230	60	1	Induction	8	1 1/2 HP	509.0	231.0
