NORTON DRILL MOTORS & DRILLING RIGS CDM 353 + CDR 353

Manufacturer: Norton
Be the first to review this product
Drill Motors & Drilling Rigs
SKU: CDM 353 + CDR 353
Vendor: Premier Screwking Bolts & Nuts Corp.
₱258,000.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

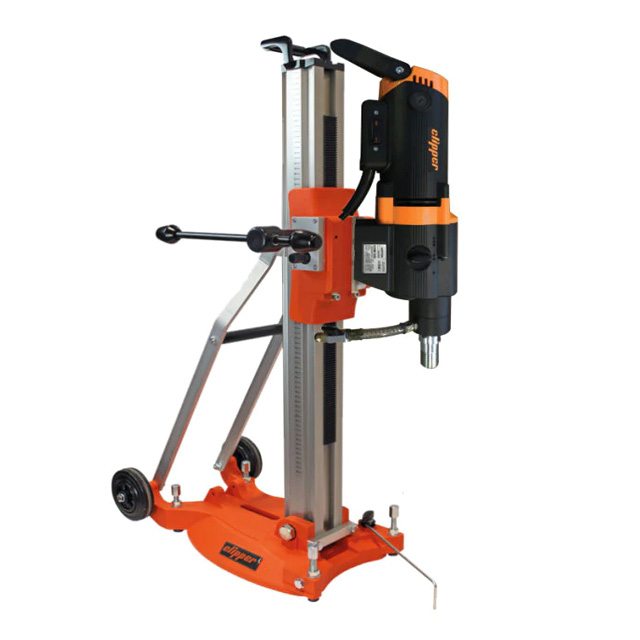

Norton CDM 353 Core Drill with Rig Stand
CDM 353 + CDR 353

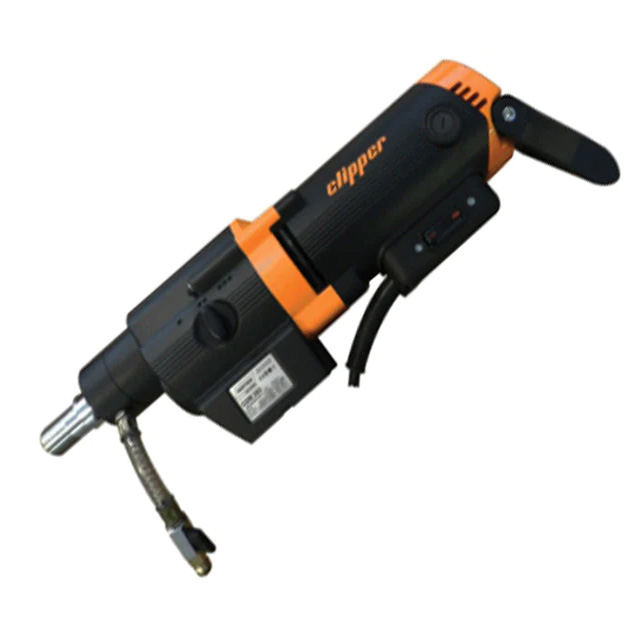

Norton CDM 353 Core Drill

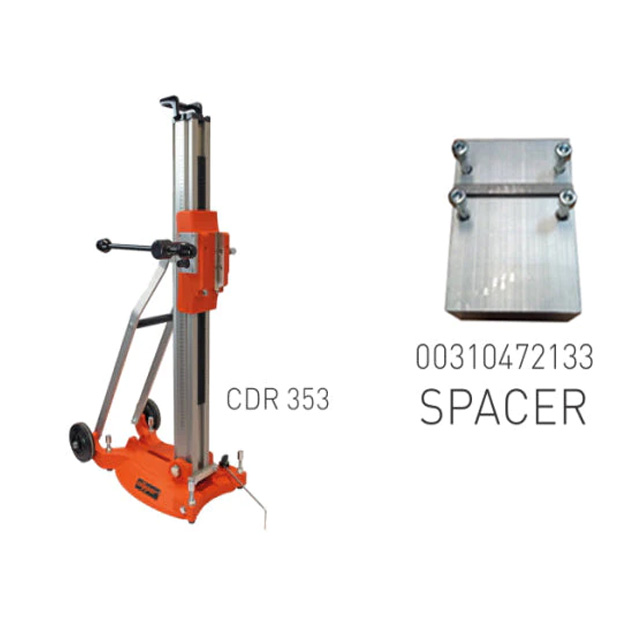

Norton CDR 353 Rig Stand
Powerful 3.3kW, 3 Speed Handheld Drill Motor
with combined spindle 1-1/4". Can be used on a drill stand.
Aluminum drill stand combining rigidity, precision and ease of use.
Accurate and smooth drilling guide of four high performance nylon rolls.
Easily accessible guiding wheels for wear compensation adjustment.

Features CDM 353 Benefits CDM 353

• Powerful 3300W drilling motor
• 3-speed gearbox
• Standard motor mounting fixture
• Overload protection
• LED load indicator
• Soft-start switch
• Mechanical clutch
• Oil-bath lubricated gearbox
• Powerful and professional motor
• For a wide drilling diameter range
• Fits to most drilling rigs on the market
• For a wide drilling diameter range
• Maintenance-free, Life-Long Lubrication
• For optimum drilling in-feed and longer life.
• Limitation of starting current
• For optimal protection of motor and tools
Features CDR 353 Benefits CDR 353

• Aluminum column
• Multi-purpose drive-lever
• Roll-guided carriage
• Transport Wheels
• Transport handle
• Pre-Mounted Rig
• Standard motor mounting fixture
• 4 points level adjustment
• Robust, reliable and lightweight
• High accuracy drill guiding, little maintenance.
• Quick and easy motor mounting without any additional tools
• Easy and ergonomic handling
• Can be used for levelling and locking screws.
• 2 different reports/ratio for an easy work.

Norton CDM 163 Core Drill Specifications

Model 70184647810
Power 3300 W
Volts 230V 1Phase
Range 30-350mm
RPM under load
192 / 390 / 570
Application Wet
Connection 1-1/4"
Weight 13.5 kg

Norton CDR 163 Rig Stand Specifications
Model 310468581 + 310472133
Diameter Max 400mm
Hub 690mm
Column Aluminum
Column Section 70 x 70mm
Base
Dowel + Vacuum
Base dimension 370 x 550mm
Weight 23.9 kg
Bit Guide Yes
Motor mounting plate Plate included
Carraige Aluminum
Carriage guiding system Rolls
Carriage handle Yes
Carraige travel 1: 1 + 2:1
Braces Yes
Tilting 0-45 degrees
Spirit Level Yes
Transport Wheels Yes
Height 1080 mm
