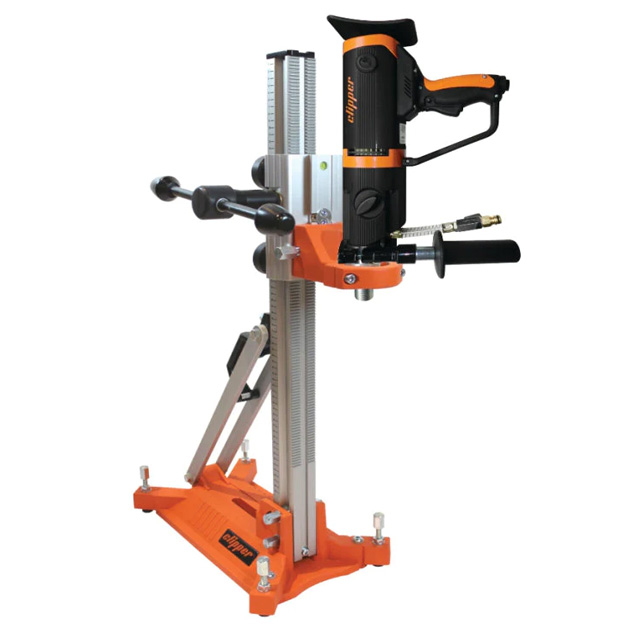

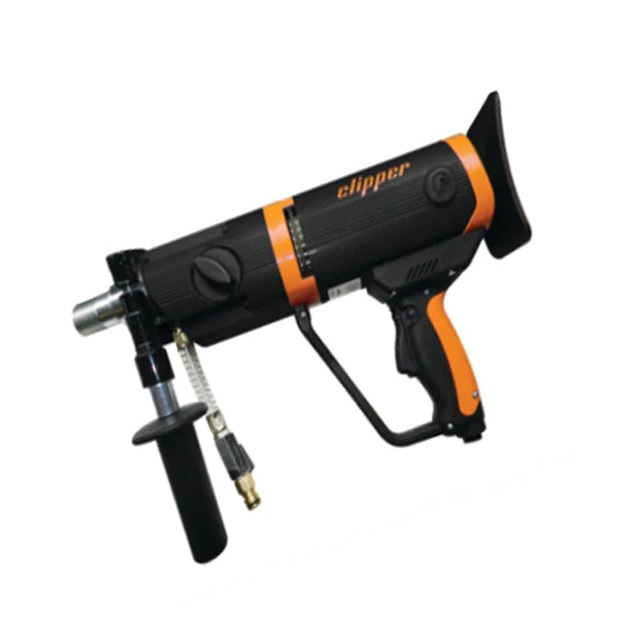

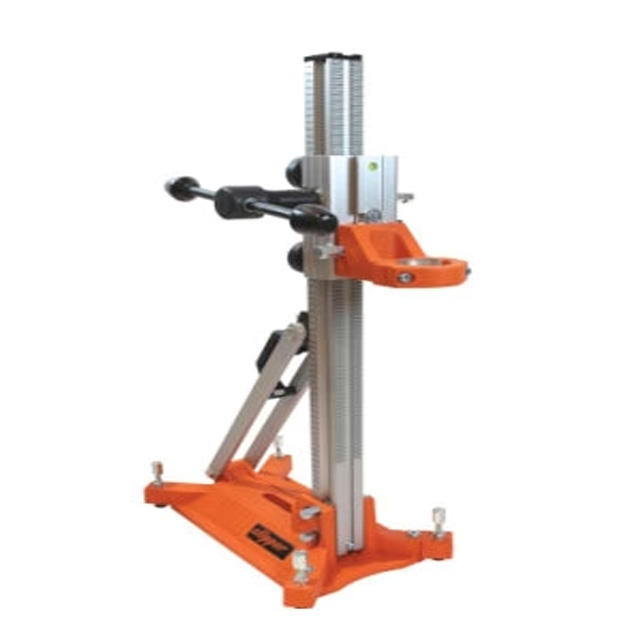

Norton CDM 163 Core Drill with Rig StandCDM 163 + CDR 163 Norton CDM 163 Core Drill Norton CDR 163 Rig Stand Powerful 1.8kW, 3 Speed Handheld Drill Motorwith combined spindle 1/2 + 1-1/4". Can be used on a drill stand. Aluminum drill stand combining rigidity, precision and ease of use.Accurate and smooth drilling guide of four high performance nylon rolls.Easily accessible guiding wheels for wear compensation adjustment. Features CDM 163 Benefits CDM 163 • Powerful 1800W drilling motor• Combined spindle• Ergonomic handles.• 60mm ring on body• 3-speed gearbox• Oil-bath lubricated gearbox• Mechanical clutch• Soft-start switch• Overload protection• Delivered in suit case • For both handheld and rig-mounted drilling• For the mounting of 1-1/4 and 1/2 core bit• East torque-control and comfortable to use• Can be mounted on drill rig• For a wide drilling diameter range• Maintenace-free, Life-Long Lubrication• For users of safety• Limitation of starting current and speed.• Protection of electrical & mechanical parts for longer life• Easy and safe transportation Features CDR 163 Benefits CDR 163 • Aluminum column• Left and right mounting drive-lever• Multi-purpose drive-lever• Roll-guided carriage• Ring mounting motor collar (60mm)• Transport handle• Pre-Mounted Rig • Robust, reliable and lightweight• Easy to use even in confined environments.• Can be used for levelling and locking screws.• For accurate column levelling.• High accuracy drill guiding, little maintenance.• Quick and easy motor mounting without any additional tools• Easy and ergonomic handling•Use it directly out of box Norton CDM 163 Core Drill Specifications Model 70184647807 Power 1800 W Volts 230V 1Phase Range 15-160mm RPM under load 540 / 1200 / 2280 Application Wet & Dry Connection 1/2 + 1-1/4" Weight 8.1 kg Norton CDR 163 Rig Stand Specifications Model 310468577 Diameter Max 160mm Hub 600mm Column Aluminum Column Section 45 x 60mm Base Dowel + Vacuum Base dimension 280 x 460mm Weight 9.6 kg Bit Guide No Motor mounting plate Ring 60mm Carraige Aluminum Carriage guiding system Rolls Carriage handle Yes Carraige travel 1: 1 Braces Yes Tilting 0-45 degrees
