FEATURES

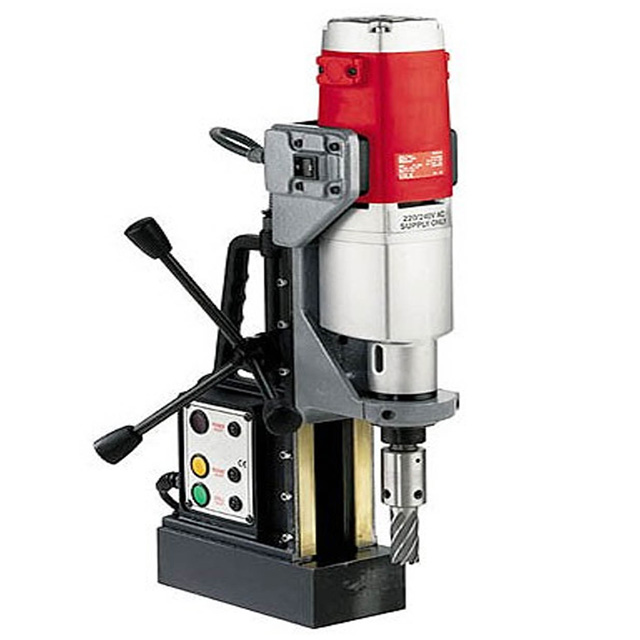

•Magnetic drilling table suitable for heavier jobs,equipped with a powerful 1050 W electric motor with a high torque,> •200Nm,and 4 rotation speeds available.

•The Morse 3 spindle guarantees high precision thanks also to the tapered coupling, easily adaptable to hard tips, either directly or by spindle.

•Safety in stability guaranteed by the magnetic plane resistant to an equivalent tensile force of 2000 kg.

•Electronic switch mounted on the panel for better control.

SPECIFICATION

Nominal power consumption of the driving motor :1050 W

Full-load speed max.:115/160/190/260rpm

Stroke:220 mm

Drill diameter max. with core hole drill bit : 85 mm

Material thickness max. : 50 mm

Weight : 28 kg
