FEATURES:

• Auto boost water pressure when water is consumed; stop running automatically when water is not consumed.
• Pre-pressure one-piece forming diaphram pressure tank with good apperance and corrosive resistant.
• Install overload protector in motor's circuit and thermal shutoff device on pump front cover protect motor from burnout due to abnormal conditions.
• Applications:
• Water supply for residential and commersial applications.
• Water pressure boosting for barber shops, restaurants, sprinkle systems, washing machines, apartments, etc.

SPECIFICATIONS:

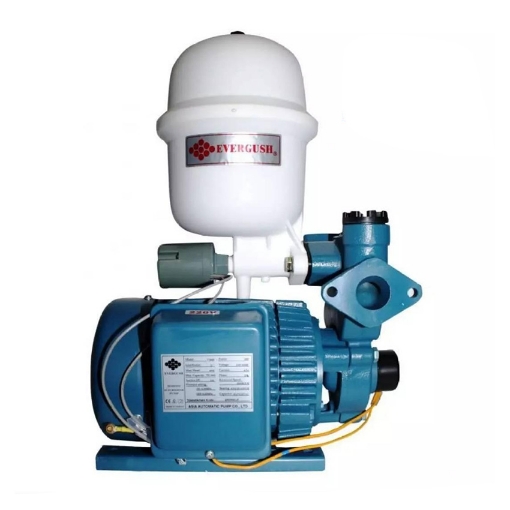

Model:                                                            V760H

Frequency (Hz):                                                  60

Power (HP):                                                         1

PH (Ø):                                                                1

Voltage (V):                                                        220

Inlet (in.):                                                            1"

Outlet (in.):                                                          1"

Pressure Setting On (Kg/cm²):                              2.0

Pressure Setting Off (Kg/cm²):                              3.2

Max. Head (m):                                                     45

Max. Flow (L/min.):                                               70

Net Weight (Kg):                                                  21.4
