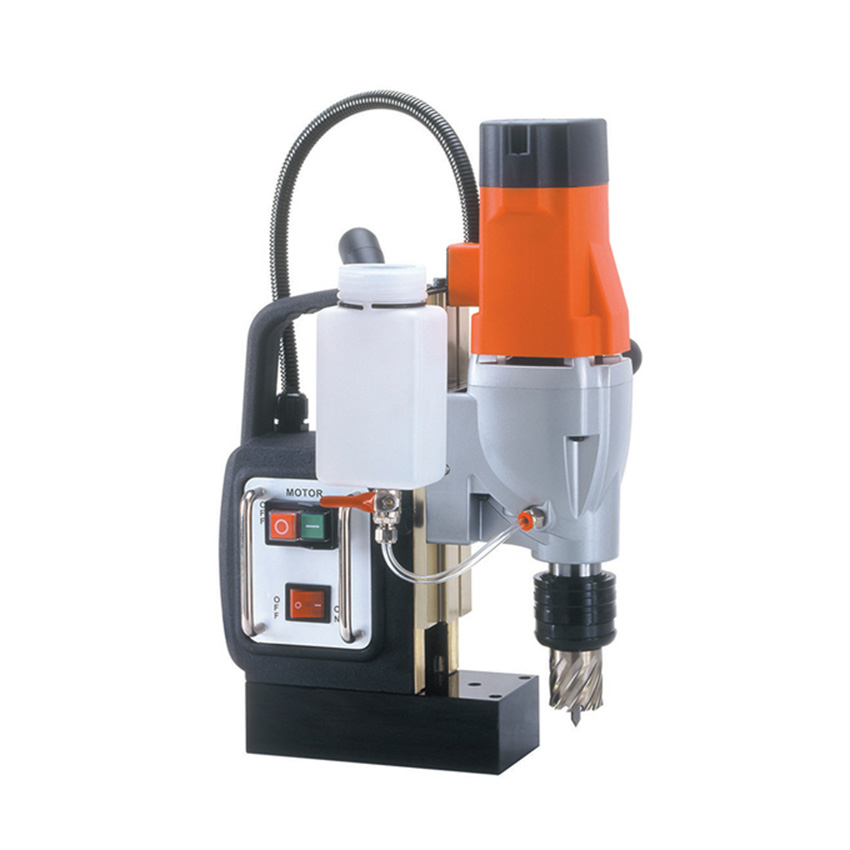

2 Speed Magnetic Drilling Machine SMD502

Manufacturer: AGP
Be the first to review this product
2 Speed Magnetic Drilling Machine
SKU: SMD502
Vendor: Premier Screwking Bolts & Nuts Corp.
Availability: In stock
₱78,000.00
i h
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 3-5 days

FEATURES:

  • Magnetic Drill  for medium size cutters
  • 2 speed mechanical gearbox for added versatility
  • Tool-free quick-release arbor for fast cutter changes
  • Variable slide height allows quick conversion between cutters and twist drills
  • Optional quick-release twist drill chuck adaptor fits directly into the arbor

SPECIFICATIONS:

Model SMD352 SMD502
Power Input 1100W 1100W
Voltage 110-120V~ 50-60Hz,
220-240V~ 50-60Hz		 110-120V~ 50-60Hz,
220-240V~ 50-60Hz
No / Full Load Min-1Speed 1 450 / 270     300 / 180
 Speed 2 730 / 440 450 / 270
Max. CapacityDia. X Depth Of Cut 35mm x 50mm ( 1-3/8" x 2") 50mm x 50mm (2" x 2")
 Dia. X Depth Twist Drill Bit 13mm x 140mm
(1/2" x 5-1/2")     		 13mm x 140mm
(1/2" x 5-1/2")
Magnetic Adhesion 17,000 N 17,000 N
Net Weight 16kg (33.07 Lbs) 16kg (33.07 Lbs)

Standard Accessories: Wrench M8, Hex.key M2.5 & M4, Coolant tank Kit, Safety Chain, Chip Guard Kit
